Product Performance
Support 1-6 color printing(optional)

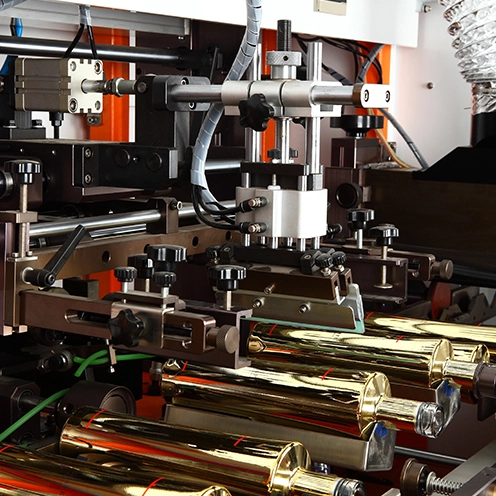

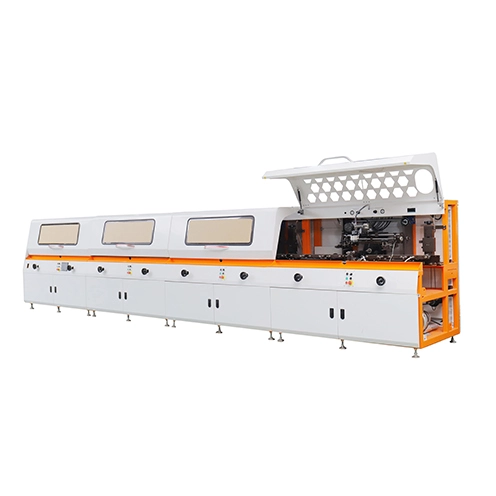

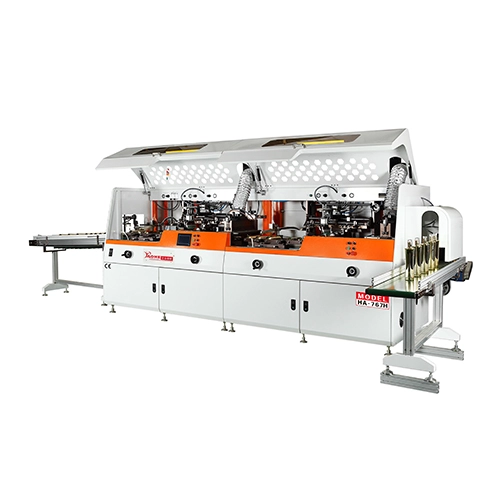

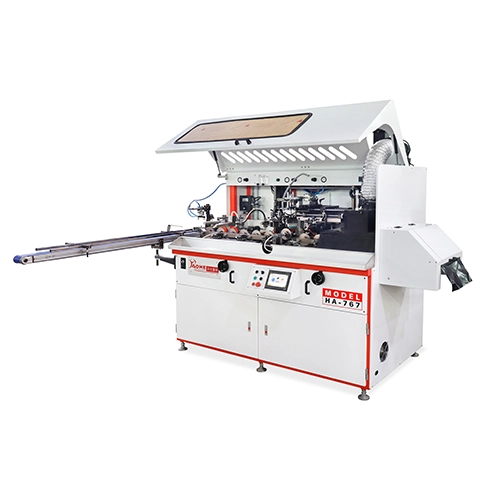

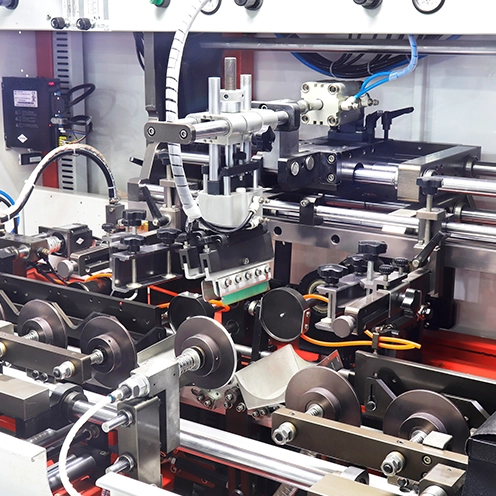

Specially designed for screen printing on circular containers
Synchronous integration of automatic feeding, automatic lifting printing, UV curing
The max. printing speed up to 4000pcs/hr.
Touch screen operation.
Specially designed for screen printing on circular containers. It makes debugging more convenient and efficient, also makes operation more stable and reliable.
This type of machine can integrate automatic feeding, automatic lifting printing, ultraviolet curing and other functions synchronously. It also combines machine driven with pneumatic driven. Al of these greatly improve printing efficiency and make the max. printing speed up to 4000pcs/hr.
With touch screen, the whole operation becomes easy and convenient.
It can also pre-check objects' position before printing, which makes printing more precise and high-efficiency.
Due to specialized electronic sensors, it can achieve automatic monitoring function such as "no object, no printing" and automatic alarm when air pressure is too low.
Al electrical components and control systems are imported from Germany and Japan, so it ensures high quality and stability of printing.
We also provide customized designs and machines according to customers' own requirements.
Shape of Printed Object | Cylindrical | Elliptical |
Max Printing Length | 250mm | 40mm-120mm |
Max Printing Width | 250mm | 40mm-120mm |
Printed Object Dimension | Φ25mm-140mm L:60mm-300mm | R; 25mm-250mm L:60mm-300mm |
Max printing speed | 4000pcs/hr | 5000pcs/hr |
Power Supply | 380v, 3 phase, 50Hz, 9kw | |
Air pressure | 5-7KG/Cm² | |
UV Lamp Power UV | 5KW | |
Machine Dimension | 2700（L）x2000(W)x1700（H）mm | |
Weight | 1500KG | |
Support 1-6 color printing(optional)
Automatic, abrasion-proof and adjustable-speed feeding conveyor and monitoring device. • American high-efficiency UV light curing system.
Two meters' check-convey for printed objects.
Independent PLC system and easy-to-use operation control system for touch screen.
High quality and stability of printing due to world famous brands of electrical components
