Product Performance
Suitable for panel printing of household appliances
Print speed up to 1000 pcs per hour
Automatic feeder and unloading
Support 5 colors printing

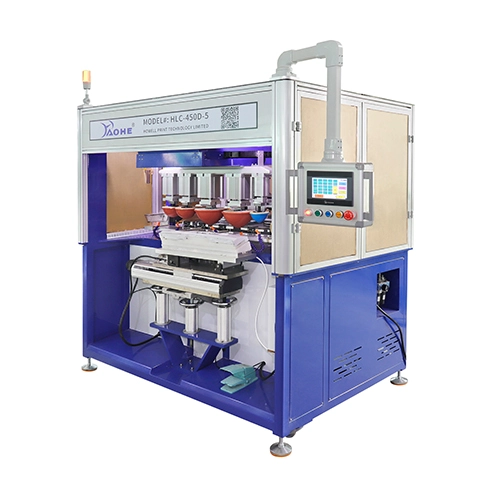

This machine is suitable for panel printing of air conditioners, washing machines and other household appliances. Whether for mass production or customized small-batch production, the machine can provide excellent printing results. Designed for household appliances: Whether it is an air conditioner or washing machine panel, the machine can be customized according to the size of the product.
Plate size | 300x100mm/360x180mm |
Ink Cup size | 100mm/180mm |
Front and back stroke | 600mm |
Up and down stroke | 75mm |
Right and Left stroke | 500mm |
Print capacity | 800-1000 PCS/hr |
Air pressure | 6-8bar |
Power | 2.75KW |
Weight | 800KG |
Main machine size | L1670Xw1580xH1880mm |

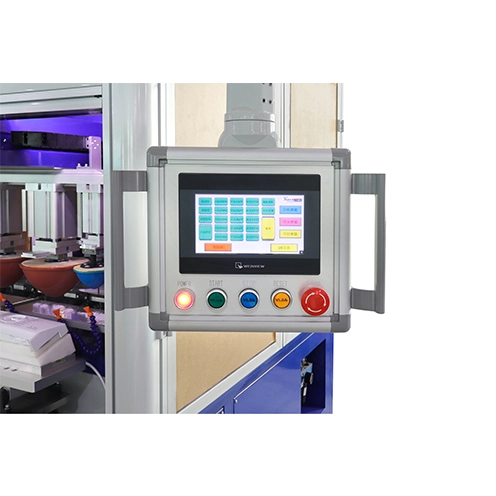

PLC control system servo module shuttle

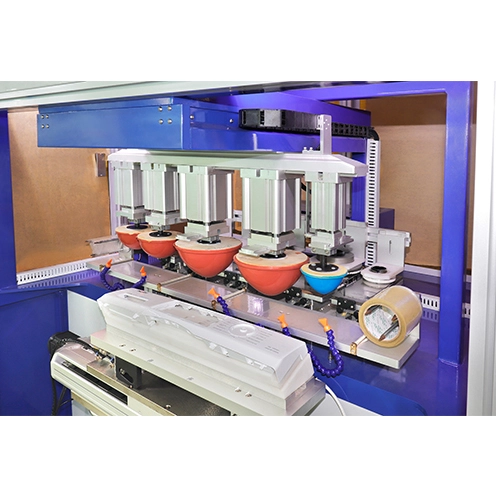

Equipped with individual print head
Comes with cleaning glue head device
Designed for home appliances
