Product Performance
Suitable for screen printing on flat

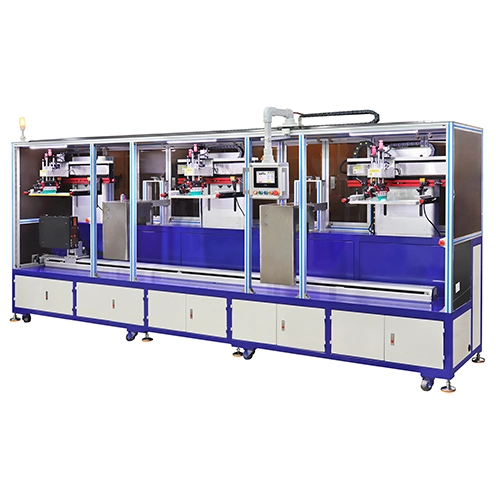

PLC, automatic screen press machine servo drive system
UV curing system
Support 1-8 color printing (optional)
Equipped with a high-precision positioning system to ensure accurate alignment of patterns, no matter the text or complex patterns can be clearly presented
Suitable for a variety of materials, including plastic, metal, glass, ceramic and other materials of flat shell
Max screen frame size | 500x750mm |
Max printing size | 300x500mm |
Right and Left stroke | 500mm |
Up and down stroke | 200mm |
Product printing High | 0-100mm |
Max printing speed | 600Pcs/hr |
Machine Dimension | 4500(L)x11066(W)x2016(H)mm |
Power | 110v/220v 60/50 HZ 4.8KW |
Weight | 2300KG |

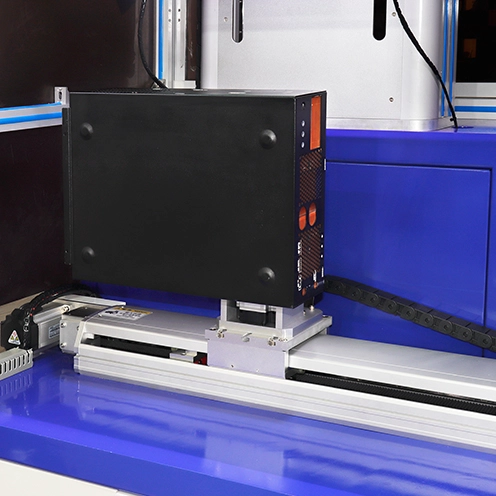

Bench shuttle adopts servo module

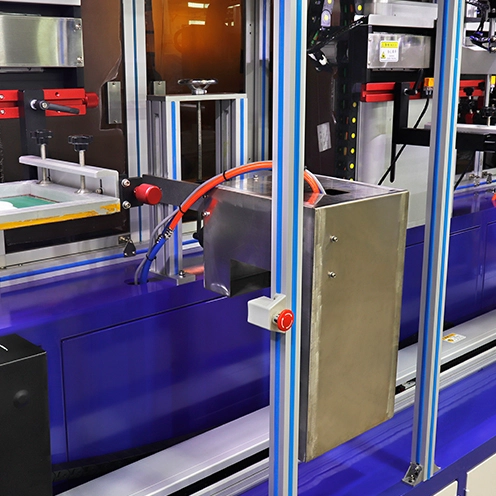

The machine is equipped with independent UV light fixation, which supports fast color matching

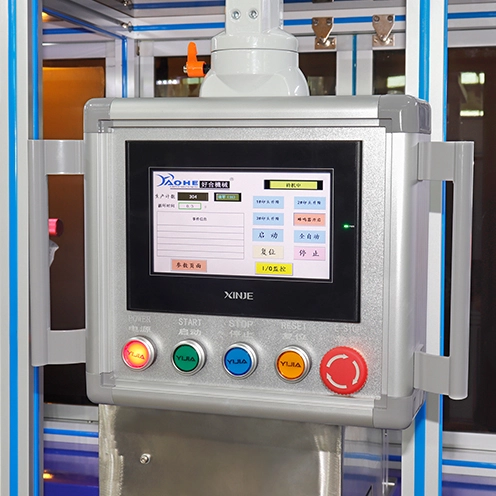

PLC servo control system

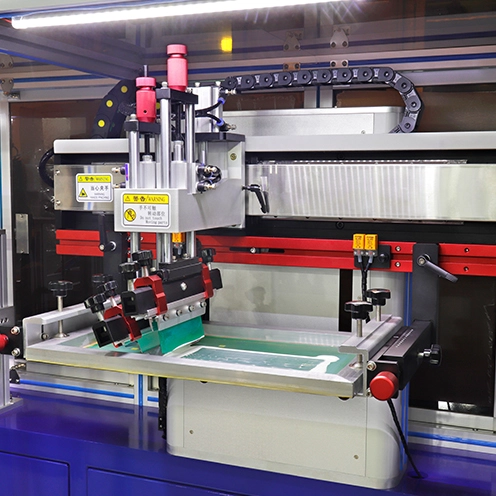

The table is equipped with servo rotating mechanism
Support 1-8 color printing (optional)
