Product Performance
Suitable for pad printing on Cap
Print speed up to 8,000 caps per hour
Automatic feeder and unloading
Support 1-2 color printing

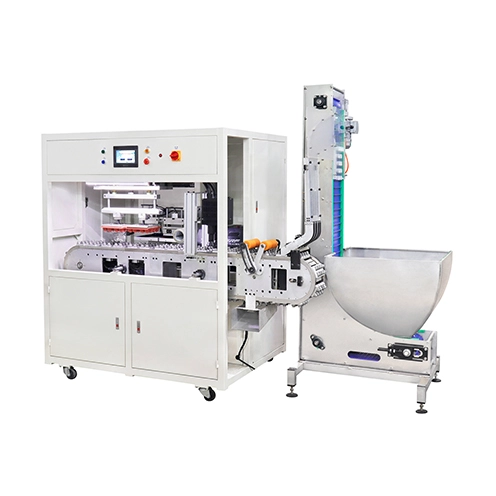

Haover automatic bottle cap pad printing machine is equipped with auto-feeder, flame treating, 2 color printing head, auto tape pad cleaning device, IR dryer, and auto-unloading device. 26 stations linear conveyor with 6 in 1 fixtures make high print output.
HW-450-C comes with a solid built welded steel machine base to ensure smooth performance and features programmable touch screen control panel and all functions can be easily programmed.
Ink system | Open tray |
Control system | PLC with touch screen |
Plate size | 100x200mm |
Cap size | Φ28-38mm |
Max printing size | Φ34mm |
Conveyor station | 26 station |
Print capacity | 8000PCS/hr |
Air pressure | 5-6bar |
Voltage | 110v/220v/230v 50/60HZ |
Weight | 550KG |
Main machine size | L1800xW1000xH1720mm |
PLC controlled with programmable touch screen
Programmable motor driven linear conveyor
6 in 1 fixture, print speed up to 8,000 caps per hour

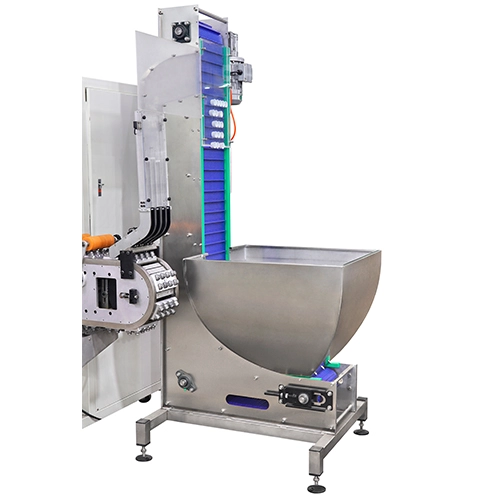

Automatic feeder and unloading
Integrated flame treating and IR dryer system
Automatic tape pad cleaning device
