Product Performance
Suitable for pad printing on Ball
Print speed up to 1600 pcs per hour
Automatic feeder and unloading
Support 1-4 color printing
This machine uses advanced pad printing technology to ensure that the printed pattern on the surface of the golf ball is high precision and high definition.
With precise control, deviations are avoided during the printing process, ensuring that the pattern on each ball is consistent.
Automatic operation process reduces manual intervention, from loading, positioning to printing, cutting are automatically completed, improve production efficiency
Can be applied to different sizes and types of spheres, such as: table tennis, tennis, baseball and so on.
Plate size | 120x270x10mm |
Ink Cup size | Φ110xΦ120 |
Front and back stroke | 0-450mm |
Up and down stroke | 0-75mm |
Print capacity | 1200-1600 PCS/hr |
Air pressure | 6-8bar |
Power | 1.7KW |
Weight | 580KG |
Main machine size | L1800xW1000xH1720mm |

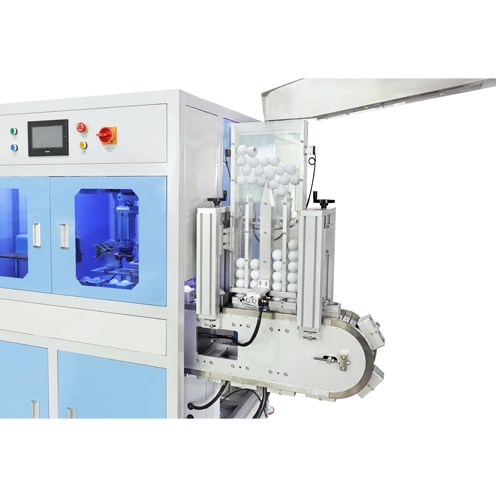

Automatic loading and unloading and whole material mechanism includes storage box
Cleaning glue head device

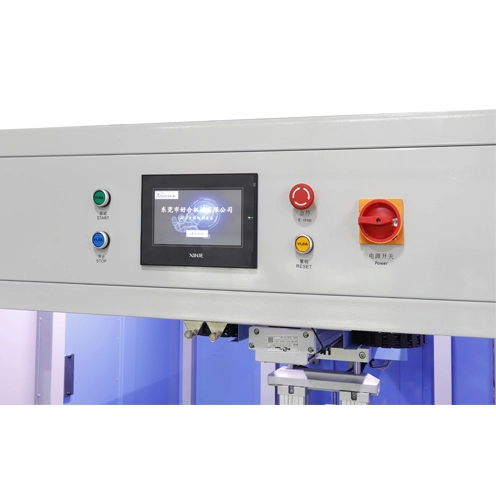

PLC control system, up to 4 colors can be customized printing
Production capacity up to 1600 per hour (Depending on product size)
